make build
make run
or
docker-compose build
docker-compose up -d
You can start the project using the docker-compose commands or the defined make commands.

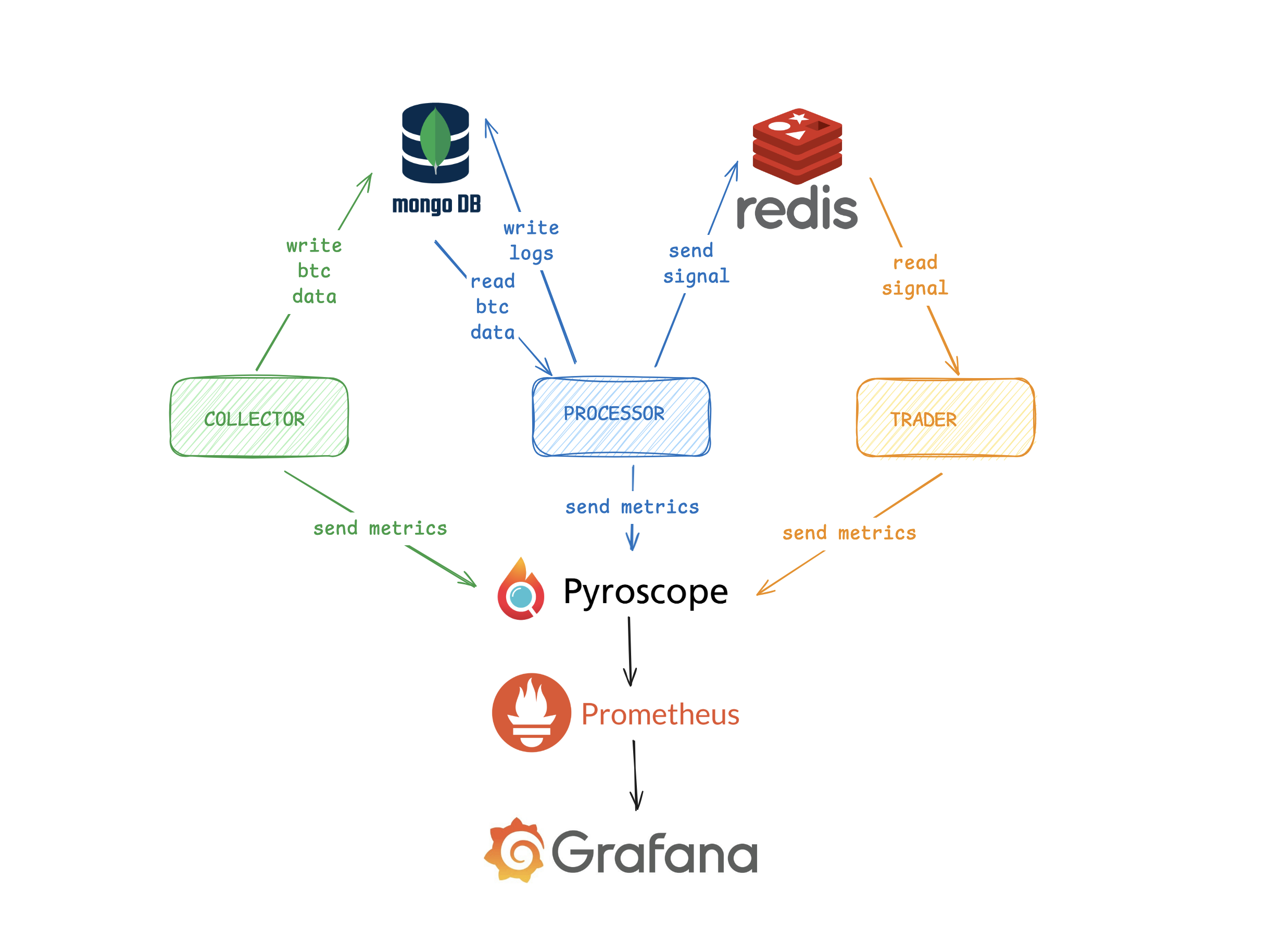

The Algo Trade project consists of 3 main modules. These are, respectively:
- collector
- processor
- trader
The Collector collects real-time BTC/USDT data from Binance via WebSocket. It writes the collected data to MongoDB.
The Processor retrieves and processes data from MongoDB. It calculates the SMA values of this data and makes BUY or SELL decisions accordingly. The decision is logged in MongoDB. The decision is sent as a signal to the Trader module via Redis streams.
The Trader module receives signals via Redis streams. It acknowledges the stream messages in Redis based on the processed signals. Buy and sell commands can be integrated here based on the received signals.
All services have health check endpoints.
All services send their metrics to Prometheus via Pyroscope. The metrics in Prometheus can be visualized using Grafana.
There are health check endpoints for 3 services.
- collector:
curl -X GET http://localhost:8080/healthcheck
- processor:
curl -X GET http://localhost:8082/healthcheck
- trader:
curl -X GET http://localhost:8083/healthcheck
The Collector health check endpoint checks the MongoDB connection.
The Processor health check endpoint checks the MongoDB and Redis connections.
The Trader health check endpoint checks the Redis connection.

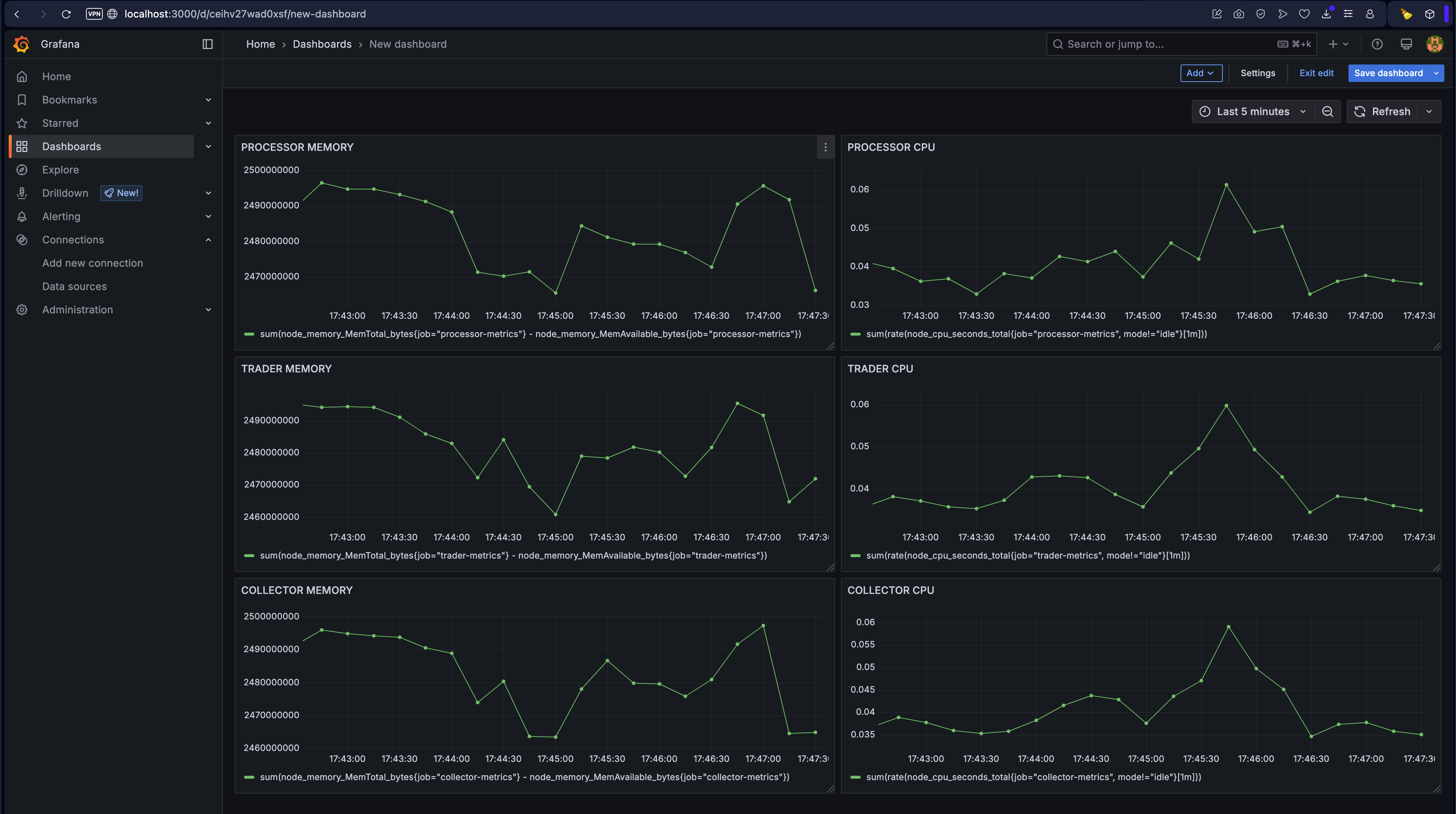

Pyroscope is used to collect metrics. Pyroscope integrates the collected metrics with Prometheus. They can be visualized using Grafana.
Example metric queries are provided below. Many more metrics are already being collected through Pyroscope and Prometheus, and they can also be visualized via Grafana.
Collector cpu
sum(rate(node_cpu_seconds_total{job="collector-metrics", mode!="idle"}[1m]))
Collector memory
sum(node_memory_MemTotal_bytes{job="processor-metrics"} - node_memory_MemAvailable_bytes{job="processor-metrics"})
Processor cpu
sum(rate(node_cpu_seconds_total{job="processor-metrics", mode!="idle"}[1m]))
Processor memory
sum(node_memory_MemTotal_bytes{job="processor-metrics"} - node_memory_MemAvailable_bytes{job="processor-metrics"})
Trader cpu
sum(rate(node_cpu_seconds_total{job="processor-metrics", mode!="idle"}[1m]))
Trader memory
sum(node_memory_MemTotal_bytes{job="trader-metrics"} - node_memory_MemAvailable_bytes{job="trader-metrics"})

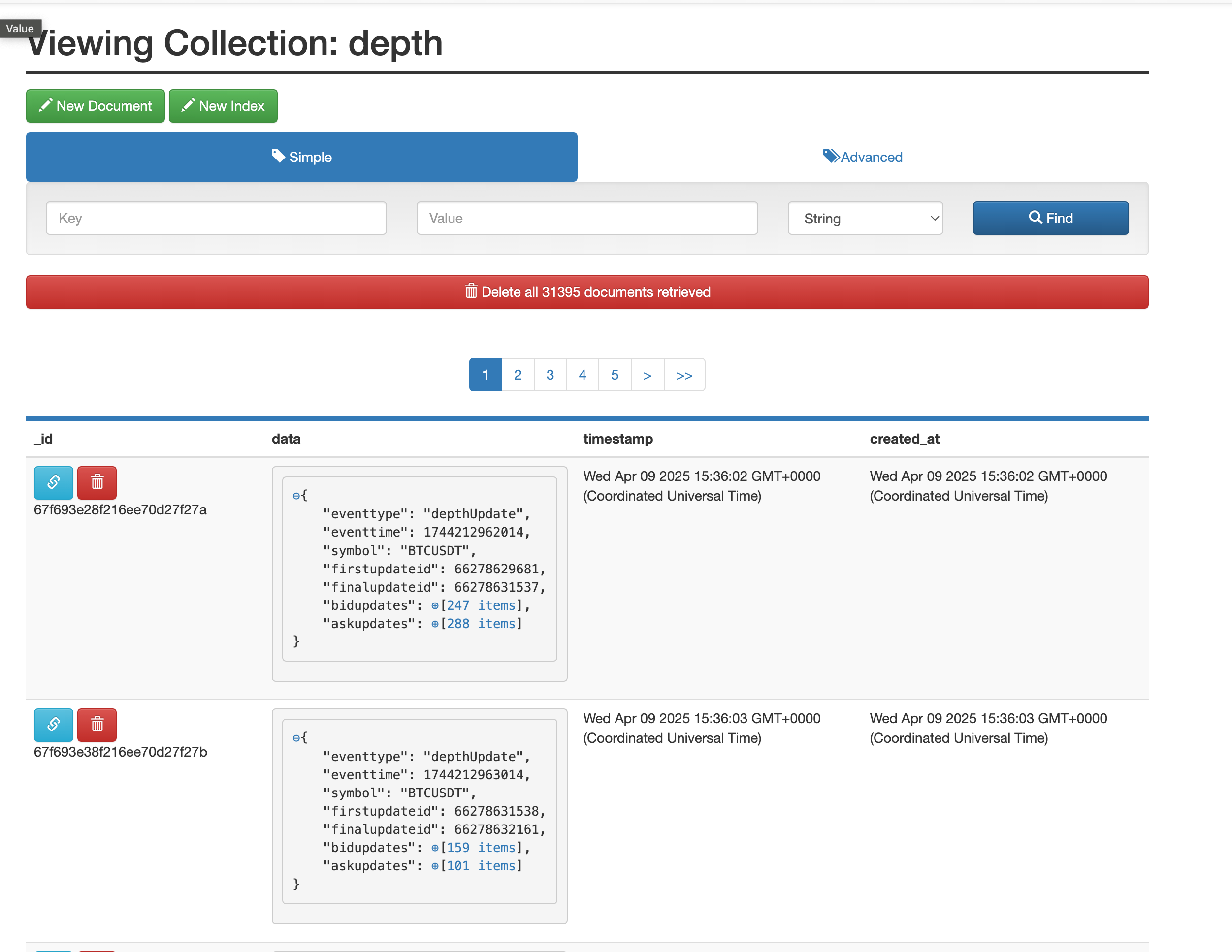

http://127.0.0.1:8081/db/btc_data/
There are 2 collections in MongoDB.

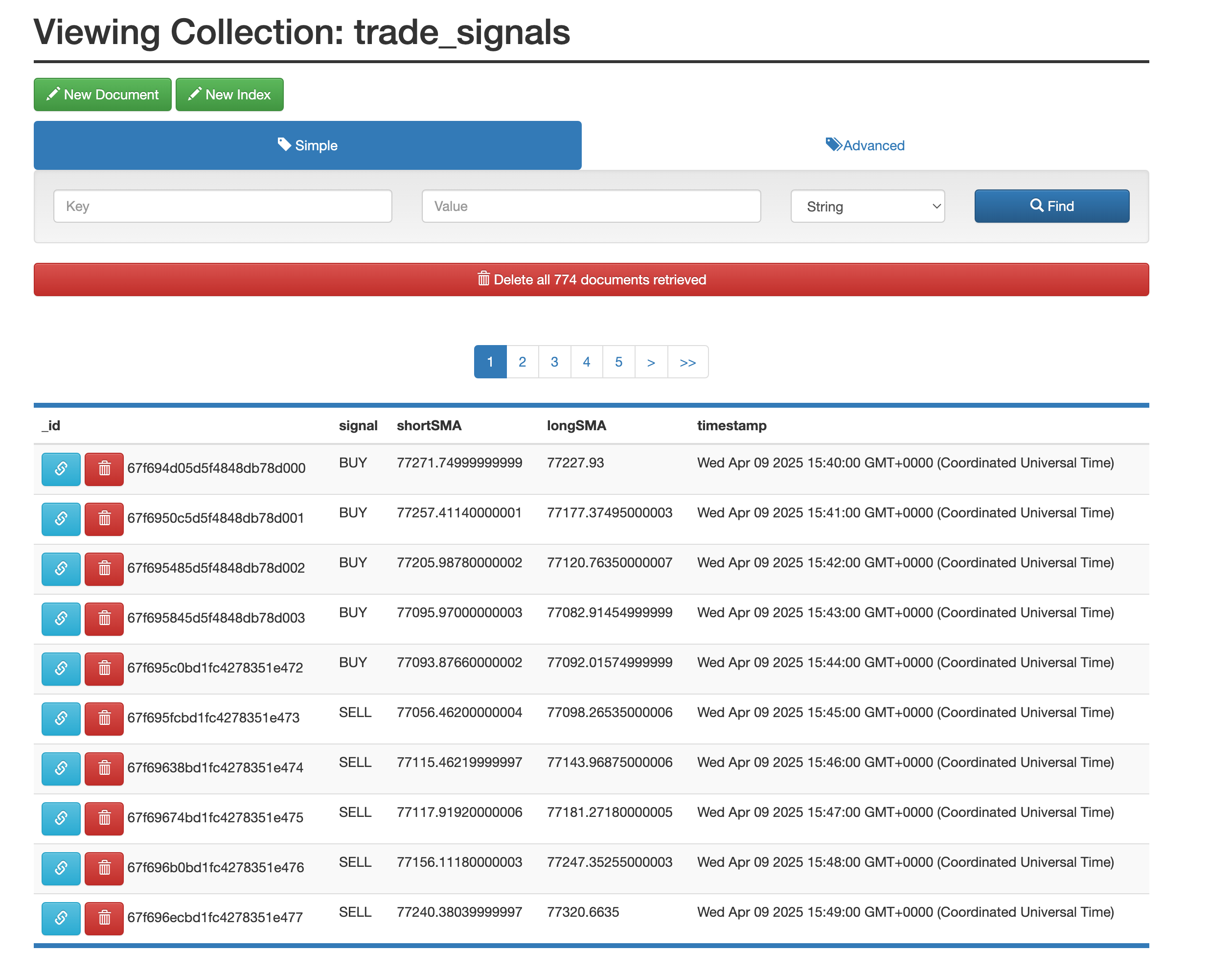

- trade_signals: Logs of processed signals
- depth: Collected price data

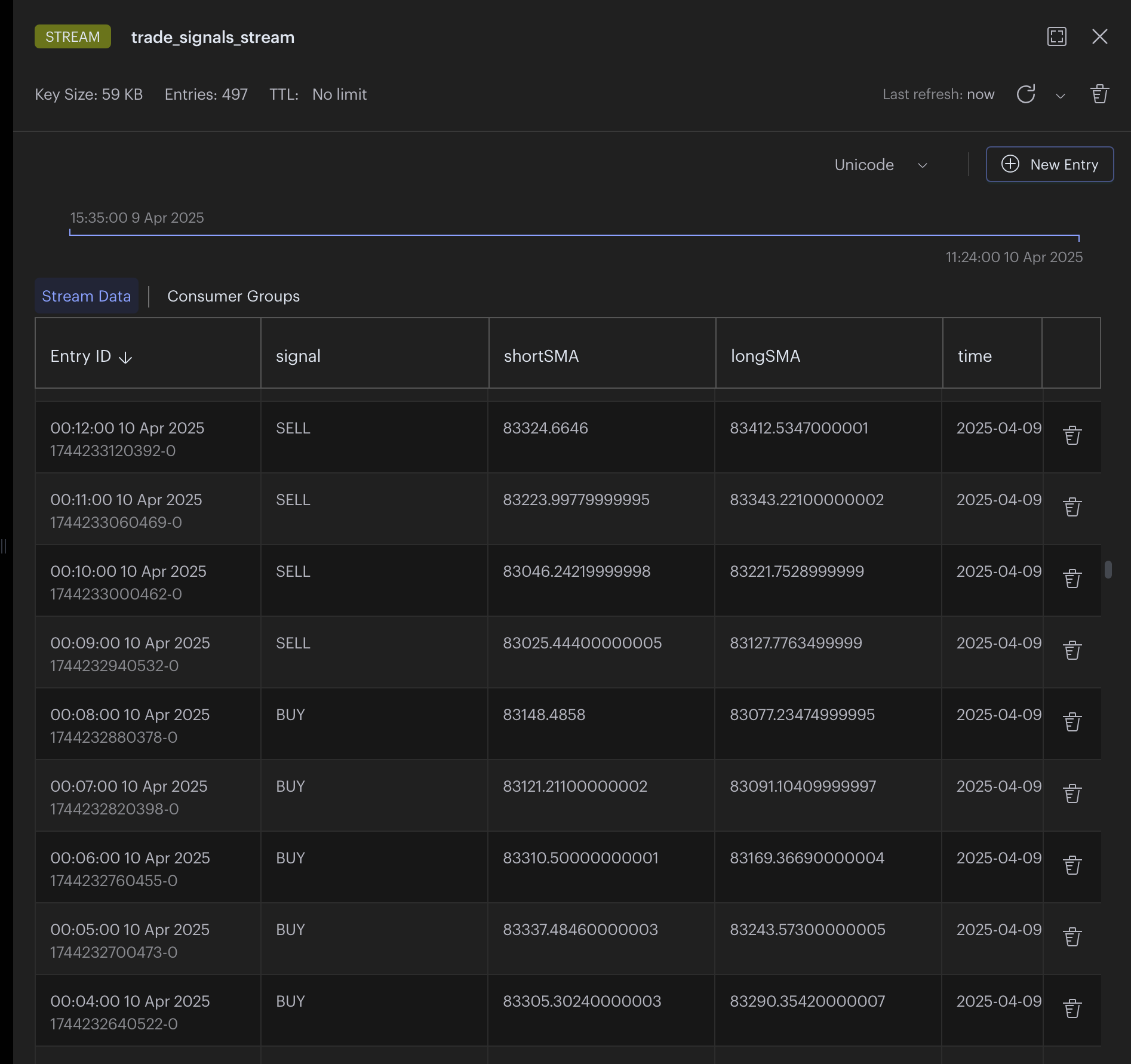

Signals are being sent and received via trade_signals_stream in Redis.
http://127.0.0.1:8001/redis-stack/browser
golangci-lint was used for code quality, and the project's code was written according to these rules.
- Golang
- MongoDB
- Redis
- Pyroscope
- Prometheus
- Grafana
- Docker
- golinter
- fiber
- gorilla/websocket
- testify

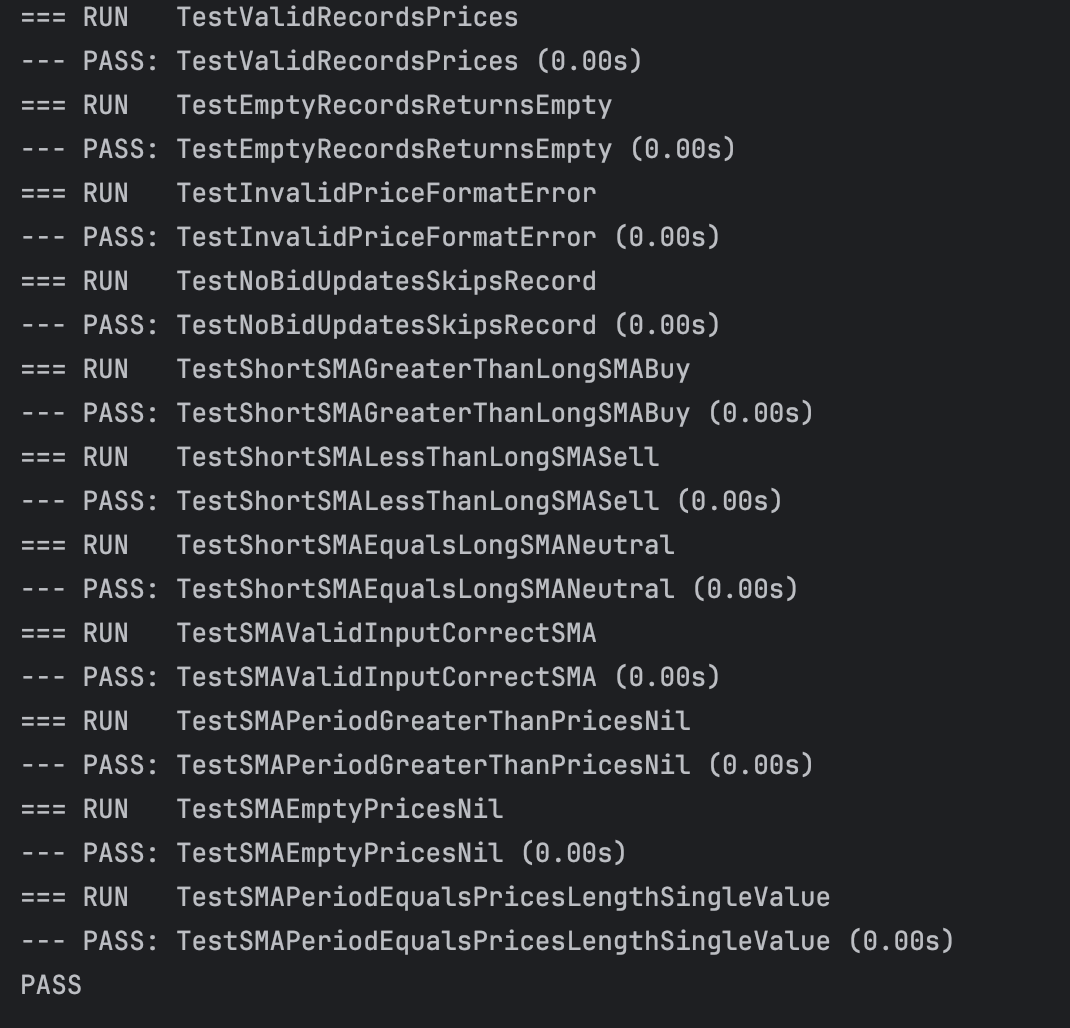

Example tests have been written for SMA calculations and signal processing.
- I had only used Redis as a caching mechanism before. Redis Streams was new to me, and it was a valuable learning experience.
- I was unfamiliar with cryptocurrency exchanges and SMA (Simple Moving Average) calculations, so I researched and implemented them step by step.
Scalability
- Microservices Architecture: The project is divided into Collector, Processor, and Trader modules, allowing independent scaling.
- Docker: Services run in containers, enabling easy horizontal scaling.
- Redis Streams: Handles high-throughput data streams efficiently.
- Monitoring: Prometheus and Pyroscope identify bottlenecks for optimization.
Fault Tolerance
- Database Replication: MongoDB Replica Sets and Redis ensure high availability.
- Health Checks: Each service has endpoints to monitor its status.
- Retry Mechanisms: Implemented for Redis and MongoDB operations.
- Container Orchestration: Tools like Kubernetes can restart failed services automatically.
Security
- Encryption: TLS/SSL secures data transmission.
- Authentication: MongoDB and Redis use username/password authentication.
- Network Isolation: Services run in isolated Docker networks.
- Code Quality: golangci-lint ensures secure and high-quality code.
